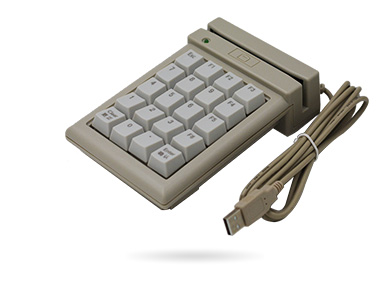

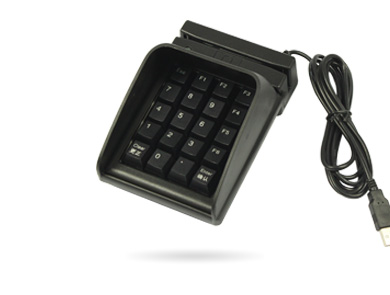

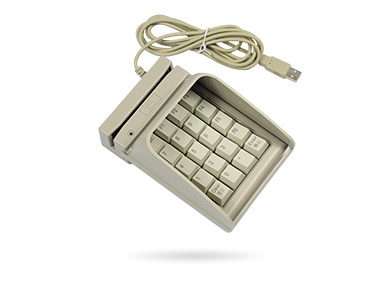

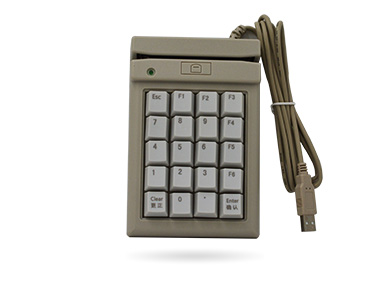

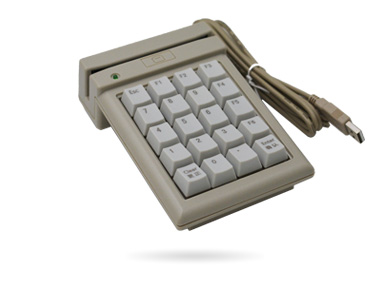

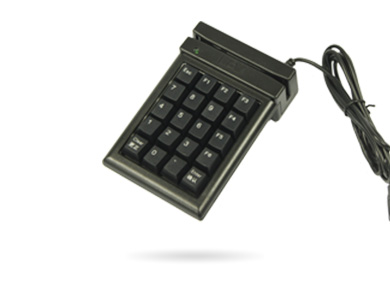

The YD-700 series magnetic card swipe card is integrated with magnetic card and password keyboard, which is used for reading and transferring magnetic card information to computer or terminal equipment. It supports two-way card operation, and can read magnetic card first, 2 and 3 track information according to different user requirements. Full compliance with ANSI/ISO technical standards
Parameter description
Keyboard layout: 20 keys (0-9 digits, 10 function keys)
Readable track: TK1/TK2/TK3, supporting bi-directional card
Magnetic card standard: magnetic stripe specification compatible with ISO, IBM, DIN and ANSI standards
Card speed: 10 ~ 120cm/s
Card reading ability: 300 OE - 4000 OE
Interface Description: optional PS2 keyboard port, USB2.0 or RS232 serial port.
Technical indicators
Working voltage: +5V
Current consumption: single track 3.5mA dual track 5.2mA three track 7.3mA
Working temperature and humidity: -20 ~ +55 C 30% ~ 90%RH
Storage temperature and humidity: -40 ~ +60 C 20% ~ 95%RH (no condensation).
Magnetic card head life: >50 million times
Antistatic: 15000V
Size: L152 * W102 * H32mm
Magnetic card data format
STX SS card data ES CR ETX
0x02 % DATA ? 0x0d 0x03 First track
0x02 : DATA ? 0x0d 0x03 Second track
0x02 + DATA ? 0x0d 0x03 Third track
application area
Major commercial POS systems, smart card companies, membership systems, etc.
Model selection
|
Product model |
description |
Correspondence |
||||
|
YD711 |
YD721 |
YD741 |
Single 1 orbit |
RS232 serial port |
PS2 |
USB |
|
YD712 |
YD722 |
YD742 |
Single 2 orbit |
RS232 serial port |
PS2 |
USB |
|
YD713 |
YD723 |
YD743 |
12 track |
RS232 serial port |
PS2 |
USB |
|
YD716 |
YD726 |
YD746 |
23 track |
RS232 serial port |
PS2 |
USB |
|
YD717 |
YD727 |
YD747 |
123 track |
RS232 serial port |
PS2 |
USB |
0755-29641875
